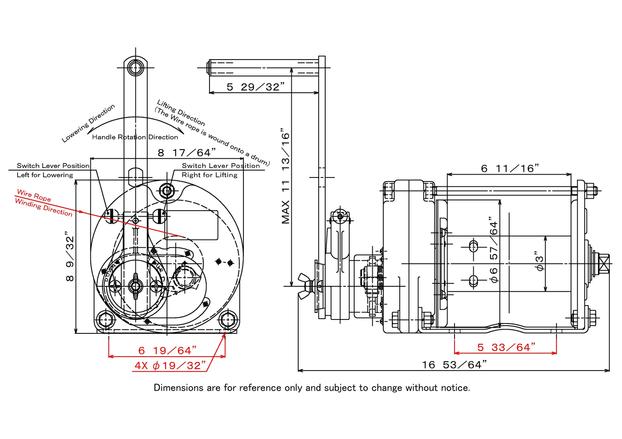

Dimensions are for reference only. And subject to change without notice.
Carefully read the Instruction Manual to understand the contents before operating the winch.
|Standard Layer||3rd Layer|
|Load Rating Wire Rope Tension||1,000kg (2,200lbs)|
|Wire Rope Diameter||φ8mm (6x37) or 5/16 inch (6x36)|
|Drum Capacity||5-Layer Windings φ8mm x 35m (5/16 inch x 114 ft)|
|Gear Ratio||12.6 : 1|
|Effective Handle Length||300mm (11.81 inch)|
|Handle Force||18.5kg (40.8lbs)|
|Weight (Winch + Handle)||17.3kg (38.1lbs)|
