|Standard Layer||4th Layer|
|Load Rating Wire Rope Tension||100kg (220lbs)|
|Wire Rope Diameter||φ5mm (6x19) or 3/16 inch (7x19)|
|Drum Capacity||6-Layer Windings φ5mm x 35m (3/16 inch x 114 ft)|
|Gear Ratio||1 : 1|
|Effective Handle Length||250mm (9.84 inch)|
|Handle Force||21.2kg (46.7lbs)|
|Weight (Winch + Handle)||7.4kg (16.3lbs)|

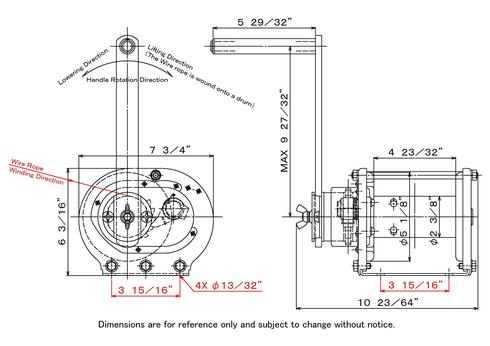

Dimensions are for reference only. And subject to change without notice.
Carefully read the Instruction Manual to understand the contents before operating the winch.
