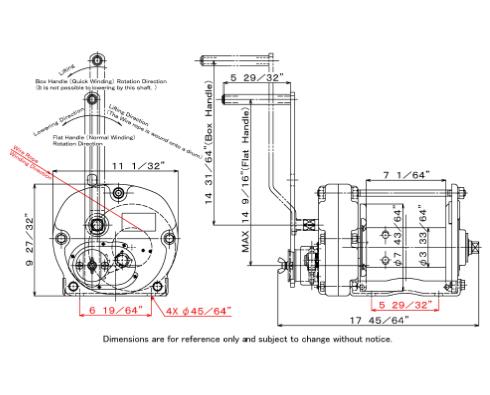

Dimensions are for reference only. And subject to change without notice.

Carefully read the Instruction Manual to understand the contents before operating the winch.

Important :

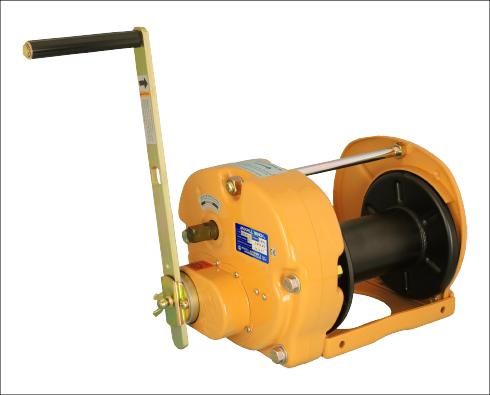

GM-20-SI

Steel (Rotating) Winch


SPECIFICATIONS


ModelGM-20-SI
Standard Layer 3rd Layer
​Load Rating Wire Rope Tension
2,000kg (4,400lbs)
Wire Rope Diameterφ9mm (6x37) or 3/8 inch (6x36)
Drum Capacity5-Layer Windings φ9mm x 38m (3/8 inch x 124 ft)
Gear Ratio20 : 1
Effective Handle Length370mm (14.57 inch)
Handle Force21.8kg (48.1lbs)
Weight (Winch + Handle)28.2kg (62.2lbs)
