Important :


Steel (Rotating) Winch


Standard Layer 3rd Layer
​Load Rating Wire Rope Tension
1,000kg (2,200lbs)
Wire Rope Diameterφ8mm (6x37) or 5/16 inch (6x36)
Drum Capacity5-Layer Windings φ8mm x 35m (5/16 inch x 114 ft)
Gear Ratio12.6 : 1
Effective Handle Length300mm (11.81 inch)
Handle Force18.5kg (40.8lbs)
Weight (Winch + Handle)16.4kg (36.2lbs)

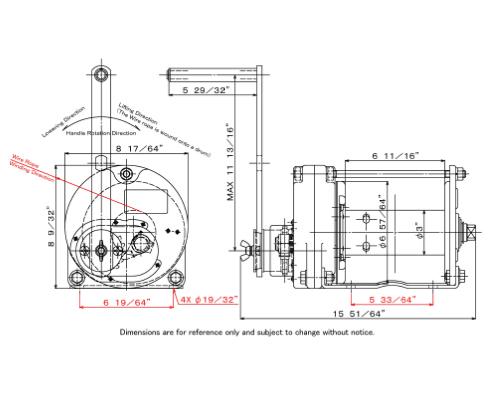

Dimensions are for reference only. And subject to change without notice.

Carefully read the Instruction Manual to understand the contents before operating the winch.
