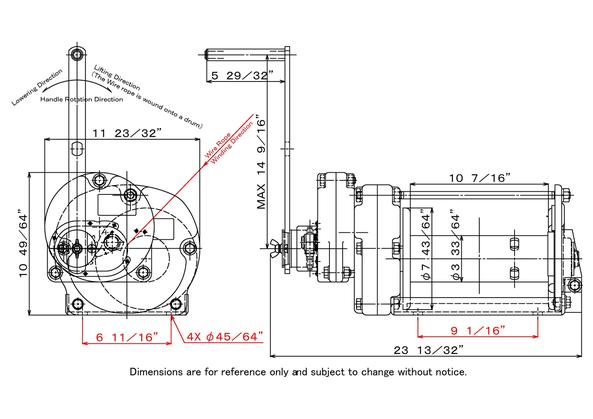

Dimensions are for reference only. And subject to change without notice.

Carefully read the Instruction Manual to understand the contents before operating the winch.

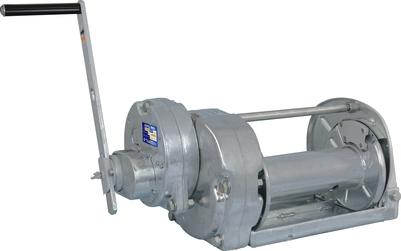

GM-30-GS-SI

Steel HOT DIP GALVANIZING (Rotating) Winch

Important :


SPECIFICATIONS


ModelGM-30-GS-SI
Standard Layer 3rd Layer
​Load Rating Wire Rope Tension
3,000kg (6,600lbs)
Wire Rope Diameterφ12mm (6x37) or 7/16 inch (6x36)
Drum Capacity4-Layer Windings φ12mm x 35m (7/16 inch x 114 ft)
Gear Ratio35.5 : 1
Effective Handle Length370mm (14.57 inch)
Handle Force20.5kg (45.2lbs)
Weight (Winch + Handle)37.7kg (83.1lbs)
