SPECIFICATIONS


ModelMC-3
Load Rating Wire Rope Tension 300kg (660lbs)
​Wire Rope Diameter
φ6mm (6x37) or 1/4 inch (6x36)
Gear Ratio6.25 : 1
Effective Handle Length250mm (9.84 inch)
Handle Force6.5kg (14.3lbs)
Hauling Tension4kg or more (8.8lbs or more)
Weight (Winch + Handle)15.8kg (34.8lbs)


Never use this winch for lifting vertically.

Carefully read the Instruction Manual to understand the contents before operating the winch.

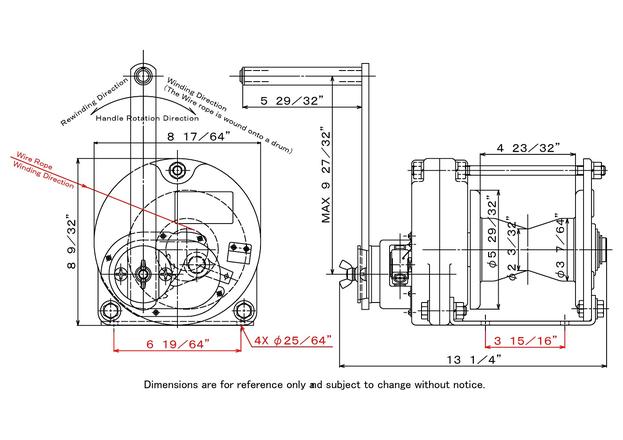

Important :   Dimensions are for reference only. And subject to change without notice.

DANGER :     Model MC is designed only for Pulling Horizontally.

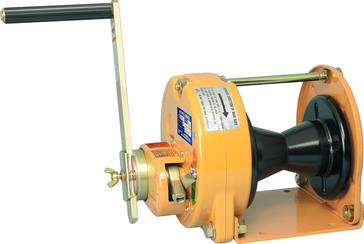

MC-3

Steel (CAPSTAN) Winch
