SPECIFICATIONS


ModelMC-20
Load Rating Wire Rope Tension 2,000kg (4,400lbs)
​Wire Rope Diameter
φ9mm (6x37) or 3/8 inch (6x36)
Gear Ratio20 : 1
Effective Handle Length370mm (14.57 inch)
Handle Force13.0kg (28.7lbs)
Hauling Tension25kg or more (55.1lbs or more)
Weight (Winch + Handle)31.3kg (69.0lbs)

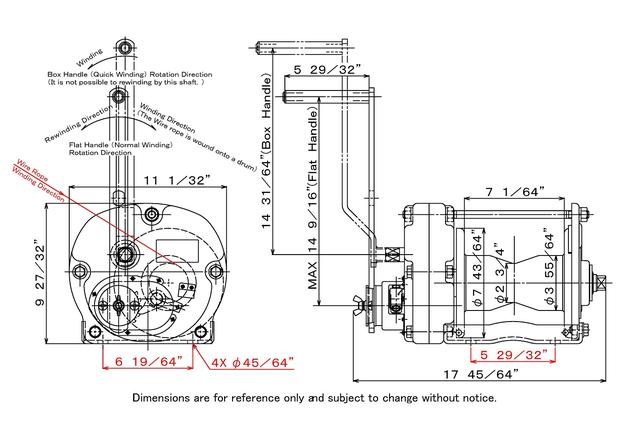

Important :   Dimensions are for reference only. And subject to change without notice.

DANGER :     Model MC is designed only for Pulling Horizontally.

Carefully read the Instruction Manual to understand the contents before operating the winch.

This product can expose you to some chemicals, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

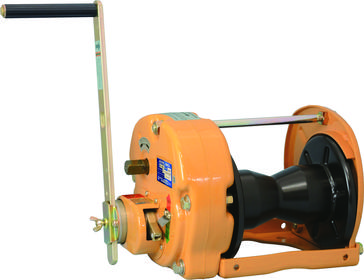

MC-20

Steel (CAPSTAN) Winch

Never use this winch for lifting vertically.

:
