SPECIFICATIONS


ModelGM-10-GS-SI
Standard Layer 3rd Layer
​Load Rating Wire Rope Tension
1,000kg (2,200lbs)
Wire Rope Diameterφ8mm (6x37) or 5/16 inch (6x36)
Drum Capacity5-Layer Windings φ8mm x 35m (5/16 inch x 114 ft)
Gear Ratio12.6 : 1
Effective Handle Length300mm (11.81 inch)
Handle Force18.5kg (40.8lbs)
Weight (Winch + Handle)16.4kg (36.2lbs)


This product can expose you to some chemicals, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

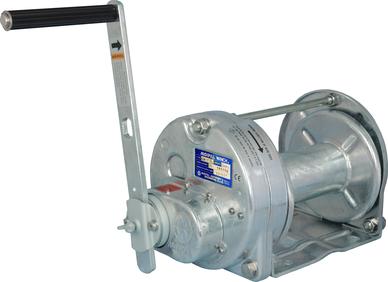

GM-10-GS-SI

Steel HOT DIP GALVANIZING (Rotating) Winch

Important :

:

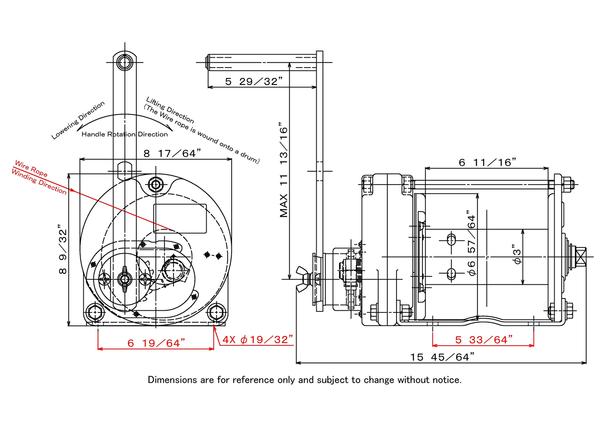

Dimensions are for reference only. And subject to change without notice.

Carefully read the Instruction Manual to understand the contents before operating the winch.
