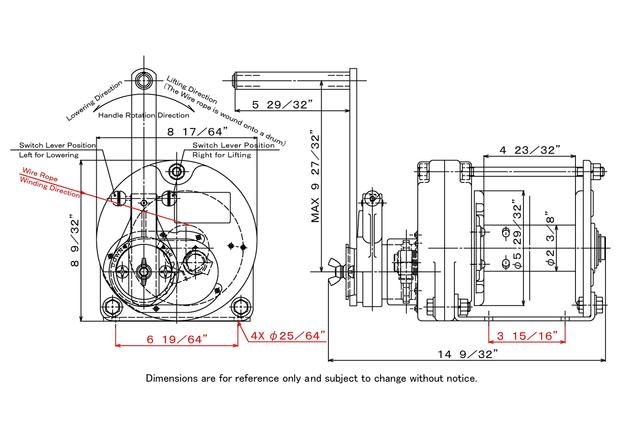

Dimensions are for reference only. And subject to change without notice.
Carefully read the Instruction Manual to understand the contents before operating the winch.
|Standard Layer||5th Layer|
|Load Rating Wire Rope Tension||300kg (660lbs)|
|Wire Rope Diameter||φ6mm (6x37) or 1/4 inch (6x36)|
|Drum Capacity||6-Layer Windings φ6mm x 32m (1/4 inch x 104 ft)|
|Gear Ratio||6.25 : 1|
|Effective Handle Length||250mm (9.84 inch)|
|Handle Force||13.3kg (29.3lbs)|
|Weight (Winch + Handle)||15.0kg (33.1lbs)|
