Load Rating Wire Rope Tension 500kg (1,100lbs)
​Wire Rope Diameter
φ6mm (6x37) or 1/4 inch (6x36)
Gear Ratio13.3 : 1
Effective Handle Length250mm (9.84 inch)
Handle Force9.9kg (21.8lbs)
Weight (Winch + Handle)About 30kg (66lbs)

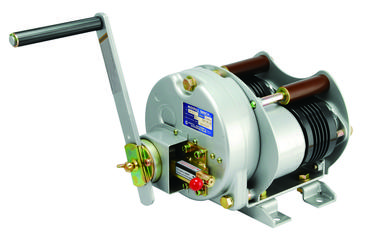

Steel (CAPSTAN) Winch


Never use this winch for lifting vertically.

Carefully read the Instruction Manual to understand the contents before operating the winch.

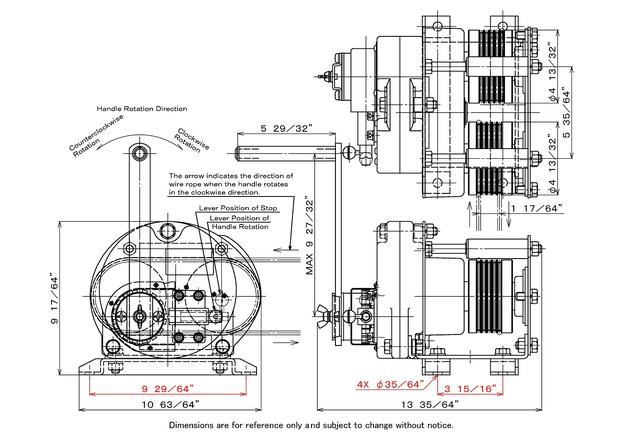

Important :   Dimensions are for reference only. And subject to change without notice.

This product can expose you to some chemicals, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

DANGER :     Model ME with Latching Brake Type (L) is designed only for Pulling Horizontally.
