GM-3-SI

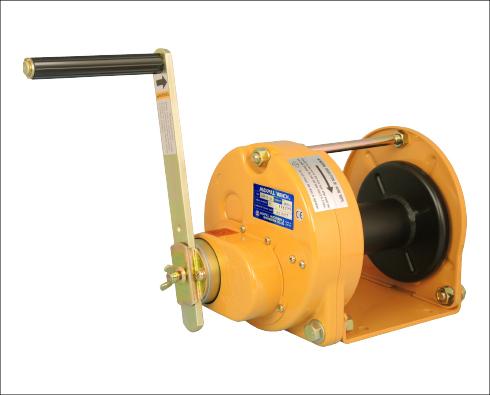

Steel (Rotating) Winch

Important :

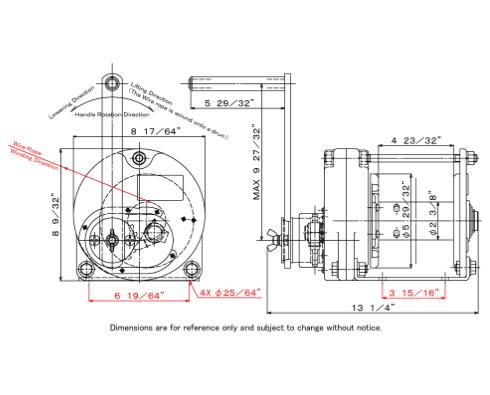

Dimensions are for reference only. And subject to change without notice.

Carefully read the Instruction Manual to understand the contents before operating the winch.


SPECIFICATIONS


ModelGM-3-SI
Standard Layer 5th Layer
​Load Rating Wire Rope Tension
300kg (660lbs)
Wire Rope Diameterφ6mm (6x37) or 1/4 inch (6x36)
Drum Capacity6-Layer Windings φ6mm x 32m (1/4 inch x 104 ft)
Gear Ratio6.25 : 1
Effective Handle Length250mm (9.84 inch)
Handle Force13.3kg (29.3lbs)
Weight (Winch + Handle)14.1kg (31.1lbs)
