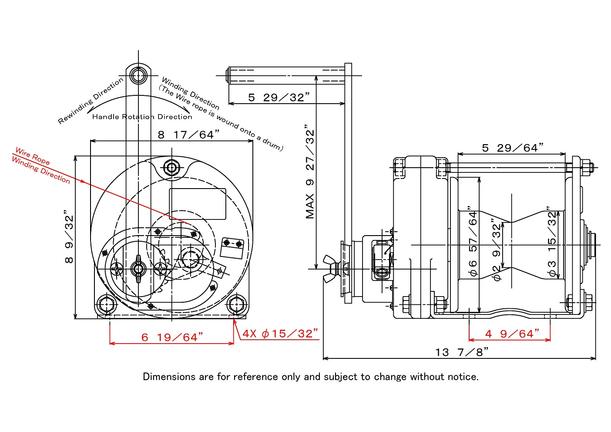

Important :   Dimensions are for reference only. And subject to change without notice.

MC-10

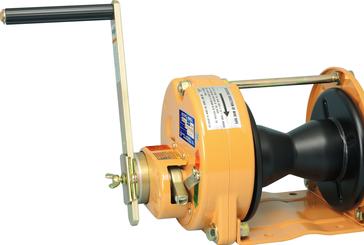

Steel (CAPSTAN) Winch

This product can expose you to some chemicals, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

DANGER :     Model MC is designed only for Pulling Horizontally.

Carefully read the Instruction Manual to understand the contents before operating the winch.


SPECIFICATIONS


ModelMC-10
Load Rating Wire Rope Tension 1,000kg (2,200lbs)
​Wire Rope Diameter
φ8mm (6x37) or 5/16 inch (6x36)
Gear Ratio12.6 : 1
Effective Handle Length300mm (11.81 inch)
Handle Force10.8kg (23.8lbs)
Hauling Tension13kg or more (28.7lbs or more)
Weight (Winch + Handle)20.1kg (44.3lbs)


Never use this winch for lifting vertically.
