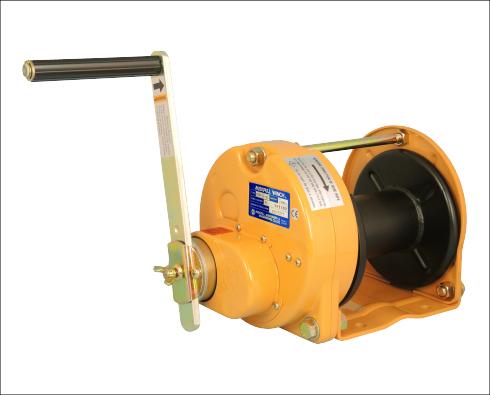

Steel (Rotating) Winch

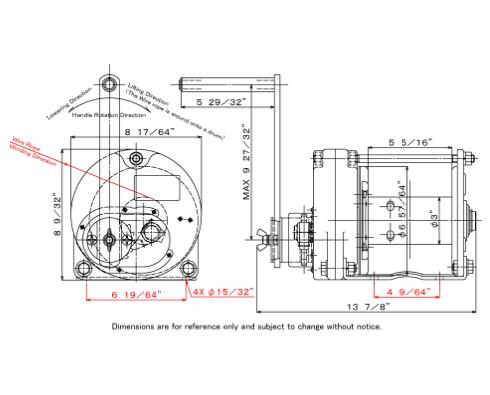

Dimensions are for reference only. And subject to change without notice.

Carefully read the Instruction Manual to understand the contents before operating the winch.


Standard Layer 5th Layer
​Load Rating Wire Rope Tension
500kg (1,100lbs)
Wire Rope Diameterφ6mm (6x37) or 1/4 inch (6x36)
Drum Capacity6-Layer Windings φ6mm x 40m (1/4 inch x 131 ft)
Gear Ratio8.9 : 1
Effective Handle Length250mm (9.84 inch)
Handle Force17.7kg (39.0lbs)
Weight (Winch + Handle)15.4kg (34.0lbs)

Important :
