Never use this winch for lifting vertically.


Steel (CAPSTAN) Winch

DANGER :     Model MC is designed only for Pulling Horizontally.

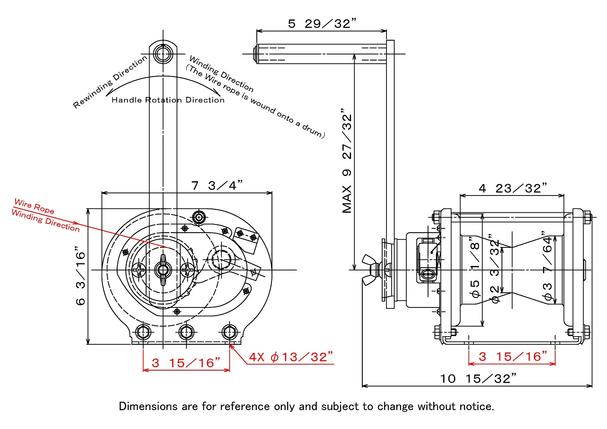

Important :   Dimensions are for reference only. And subject to change without notice.

Carefully read the Instruction Manual to understand the contents before operating the winch.



Load Rating Wire Rope Tension 100kg (220lbs)
​Wire Rope Diameter
φ5mm (6x19) or 3/16 inch (7x19)
Gear Ratio1 : 1
Effective Handle Length250mm (9.84 inch)
Handle Force12.4kg (27.3lbs)
Hauling Tension2kg or more (4.4lbs or more)
Weight (Winch + Handle)8.9kg (19.6lbs)

This product can expose you to some chemicals, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to
