MR-1-SI

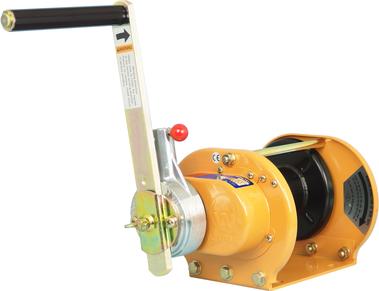

Steel (RATCHET) Winch

:

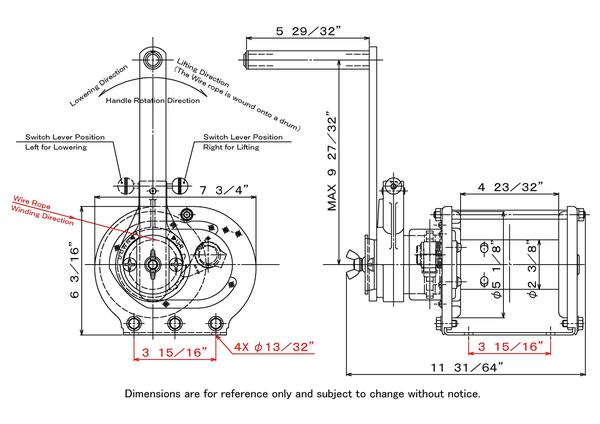

Dimensions are for reference only. And subject to change without notice.

Carefully read the Instruction Manual to understand the contents before operating the winch.

This product can expose you to some chemicals, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Important :


SPECIFICATIONS


ModelMR-1-SI
Standard Layer 4th Layer
​Load Rating Wire Rope Tension
100kg (220lbs)
Wire Rope Diameterφ5mm (6x19) or 3/16 inch (7x19)
Drum Capacity6-Layer Windings φ5mm x 35m (3/16 inch x 114 ft)
Gear Ratio1 : 1
Effective Handle Length250mm (9.84 inch)
Handle Force21.2kg (46.7lbs)
Weight (Winch + Handle)8.1kg (17.9lbs)
