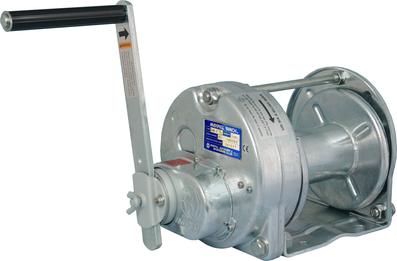

Steel HOT DIP GALVANIZING (Rotating) Winch

Important :

This product can expose you to some chemicals, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to

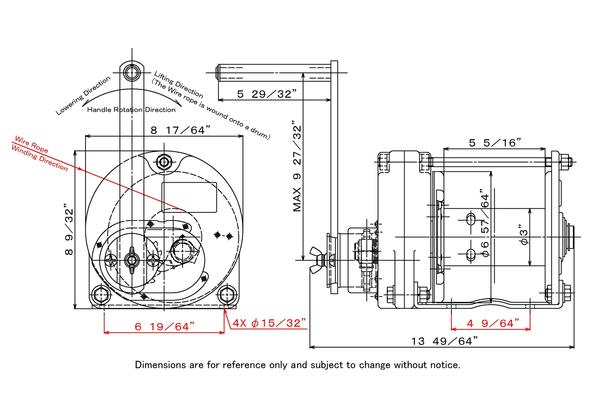

Dimensions are for reference only. And subject to change without notice.

Carefully read the Instruction Manual to understand the contents before operating the winch.


Standard Layer 5th Layer
​Load Rating Wire Rope Tension
500kg (1,100lbs)
Wire Rope Diameterφ6mm (6x37) or 1/4 inch (6x36)
Drum Capacity6-Layer Windings φ6mm x 40m (1/4 inch x 131 ft)
Gear Ratio8.9 : 1
Effective Handle Length250mm (9.84 inch)
Handle Force17.7kg (39.0lbs)
Weight (Winch + Handle)15.4kg (34.0lbs)
