DANGER :     Model MC is designed only for Pulling Horizontally.

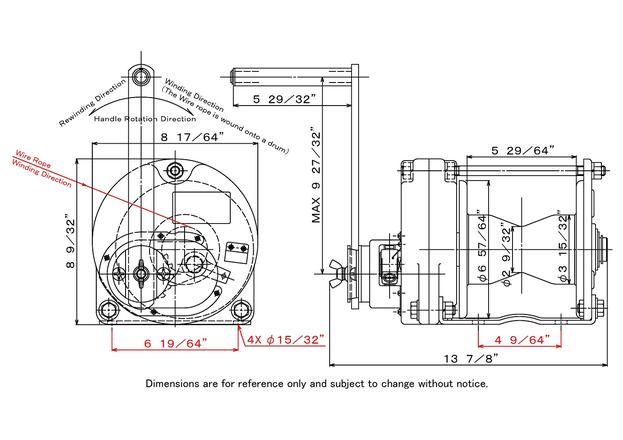

Important :   Dimensions are for reference only. And subject to change without notice.

Never use this winch for lifting vertically.

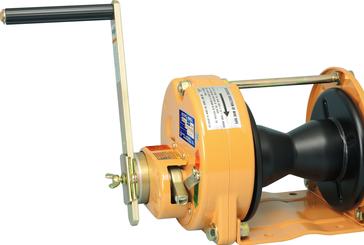

MC-5

Steel (CAPSTAN) Winch


SPECIFICATIONS


ModelMC-5
Load Rating Wire Rope Tension 500kg (1,100lbs)
​Wire Rope Diameter
φ6mm (6x37) or 1/4 inch (6x36)
Gear Ratio8.9 : 1
Effective Handle Length250mm (9.84 inch)
Handle Force8.5kg (18.7lbs)
Hauling Tension7kg or more (15.4lbs or more)
Weight (Winch + Handle)17.8kg (39.2lbs)


Carefully read the Instruction Manual to understand the contents before operating the winch.
