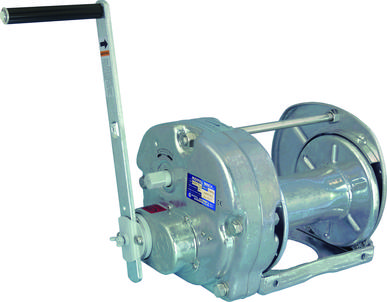

Steel HOT DIP GALVANIZING (Rotating) Winch

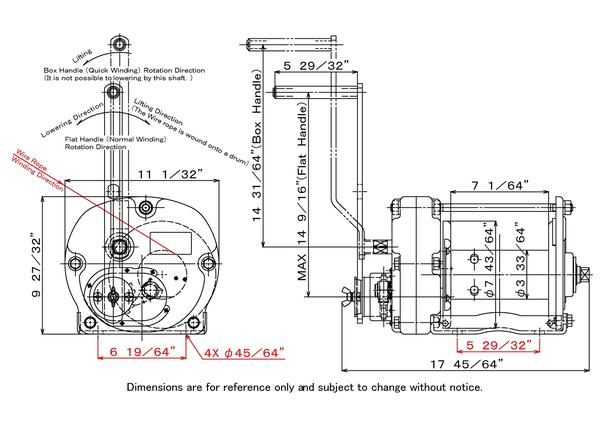

Dimensions are for reference only. And subject to change without notice.

Carefully read the Instruction Manual to understand the contents before operating the winch.

Important :

This product can expose you to some chemicals, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.


Standard Layer 3rd Layer
​Load Rating Wire Rope Tension
2,000kg (4,400lbs)
Wire Rope Diameterφ9mm (6x37) or 3/8 inch (6x36)
Drum Capacity5-Layer Windings φ9mm x 38m (3/8 inch x 124 ft)
Gear Ratio20 : 1
Effective Handle Length370mm (14.57 inch)
Handle Force21.8kg (48.1lbs)
Weight (Winch + Handle)28.2kg (62.2lbs)
